Philips Manhattan Interior Lighting

I designed this Manhattan lighting series for Philips in 1989. The smart design structure makes all desired lighting applications possible. The design was marketed worldwide.

The design allowed the lighting fixtures to be realised with minimal use of materials and produced with just one set of moulds. Therefore, the series could be launched on the market with low investments. All conceivable applications are possible with the adjustable luminaires, from floor lamps and table lamps to wall lamps and pendant lighting variants.

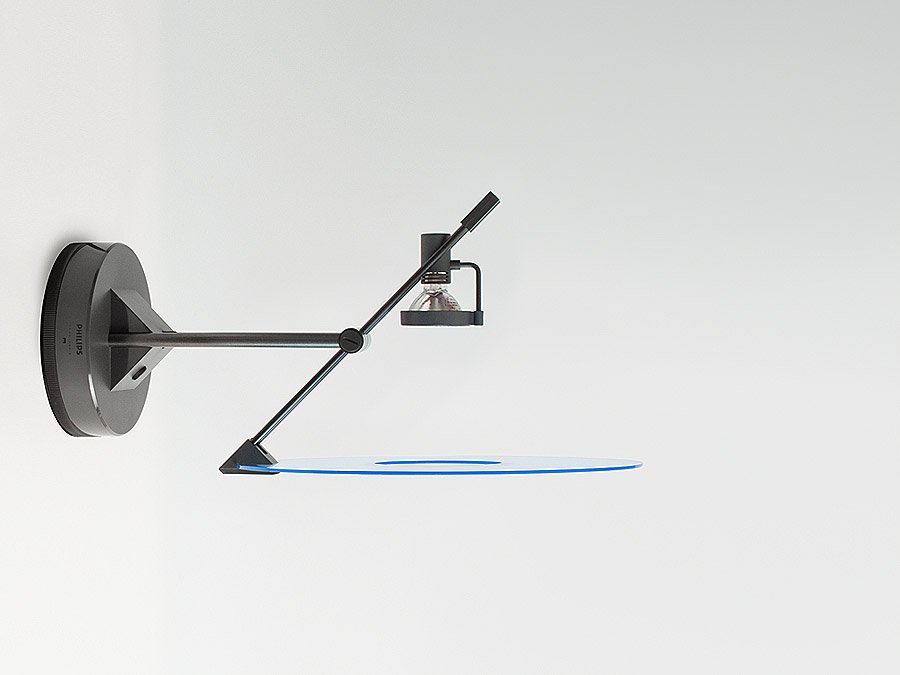

The light source is suspended behind a diffuse disc that can be rotated to direct the light. The diameter of the hole in the disc is equal to the diameter of the light beam at the given distance and provides direct lighting. All Manhattan luminaires are equipped with a reflector that can be clicked into the disc hole to prevent glare and provide indirect lighting as desired. The matted part of the disc catches the stray light, which creates a decorative effect. This allows the lamps to be used as decorative ambient lighting or as accent and task lighting. The series is also available in infrared remote control versions and is still offered in vintage stores worldwide.

Manhattan lighting series has received the Norwegian Design Award.

Client
Philips

Design
Alfred van Elk

Engineering
Philips

Photography
Piotr Tumidajewicz

Awards
Norwegian Design Award
